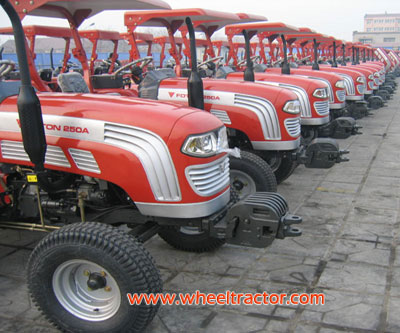

Foton Tractor - TE250

Foton Tractor - TE250
Foton Tractor - TE250
Go back to catalogue Foton Tractor

Payment Terms: T/T, L/C At Sight
Package: Pallet Packing or as customer requier
Minimum Order:1 SET
Delivery Time:15 Days - 30Days
Export Markets:North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Model TE200
FT200
TE204
FT204

TE250
FT250

TE254
FT254
TE280
FT280
TE284
FT284
TE300
FT300
TE304
FT304
TE320
FT320
TE324
FT324
Drive type 4x2 4x4 4x2 4x4 4x2 4x4 4x2 4x4 4x2 4x4
Engine
Type of the engine 3-Cylinder type
Max.Torque(N.m)@ speed(rpm) 75Nm@(1560-1760) 90Nm@(1560-1760) 98@(1560-1760) 115@(1450-1650) 122.6@(1450-1650)
Displacement(L) 1.36 1.53 1.65 2.03 2.47
Capacity of Fuel Tank (L/Gal) 29(6.38)
Engine Power at Rated Speed KW@rpm 14.7@2350 18.4@2350 20.6@2350 22 23.5
PTO Power at Rated Speed KW@rpm 13@2350 16.5@2350 18.5@2350 19.9 21.2
Transmission
Clutch Dry,Dual-stage type or single-stage type
PTO SPeed 540/1000 rpm
Gear shift 8+2/8+8/16+4
Way of gear shifting Meshing cover
Hydraulic system
Hydraulic out put flux (L/min) 271
Hydraulic out put valve 2-way
Three-point linkage
Category of 3-point Link 0/1 Category
Lifting Force(at point of 610mm)KN 4.2 4.6 4.96 5.29
Lifting Force(origin)KN 8.17 8.95 9.65 10.29
Technical perameter
Overail size(LxWxH)mm 3210x1475x1792 2WD:3340x1500x2015; 4WD:3312x1524x2255
Wheelbase(mm) 1531/1639 1706/1780
The smallest clearance 325 270 325 270 325 270 338 290 338 290
Front Tires 5.00-16 6.00-14 5.00-16 6.00-14 5.00-16 6.00-14 6.00-16 6.50-16 6.00-16 6.50-16
Rear Tires 8.3-24/9.5-24 9.5-24/11.2-24
