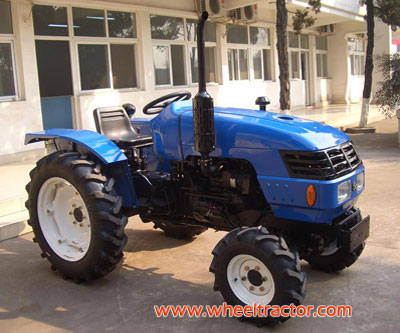

Dongfeng Tractor - DF254
Go back to catalogue Dongfeng Tractor
Go back to catalogue Dongfeng Tractor
Payment Terms: T/T, L/C At Sight
Package: Pallet Packing or as customer requier
Minimum Order:1 SET
Delivery Time:15 Days - 30Days
Export Markets:North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
wheeltractor
E-mail Us
PDF Download
Online Inquiry
| Tractor Parameters | Model | DF-254 | |
| Drive Type | 4WD | ||
| Overall Dimensions L×W×H(mm) | 2800×1350×1460 Height steering wheel | ||
| Wheel Track(mm) | Front | 984 | |
| Rear | 1020,1120,1220,1320 | ||
| Wheel Base(mm) | 1638 | ||
| Ground Clearance(mm) | Under Front Axle | 292 | |
| Under Rear Axle | 290 | ||
| Rated Traction Force(N) | In Paddy Fields | 4435 | |
| In Dry Fields | 6410 | ||
| Construction Mass(Kg) | 1190 | ||
| Min. Turning Radius(m) | 2.40 | ||
| Theoretical Speed(Km/h) | Forward | 1.11,1.29,2.90,5.06,5.75,9.26,15.02,26.20 | |
| Reverse | 1.44,7.45 | ||
| Engine Specifications | Model | Y385T | |
| Type | 3-cylinder,Upright inline cylinder, radiator cooling,4-stroke cycle | ||
| 12-hour Rated Power(Kw/hp) | 18.4/25.0 | ||
| Rated Speed(rpm) | 2350 | ||
| Bore×Stroke(mm) | 85×90 | ||
| Total Displacement(L) | 1.532 | ||
| Drive System | Clutch | Dual-stage | |
| Gear Box | (4+1)×2 | ||
| Main Drive | One Pair of Spiral Bevel gears | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmissions | Spur Gear, External Gearing | ||
| Travelling Mechanism | Tyre | front | 6.00-12(herringbone pattern) |
| rear | 8.3-24(herringbone pattern) | ||
| Steering Gear | Full Hydraulic steering | ||
| Brake | Disk type | ||
| Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point(Kg) | 432kg |
| 3-point Suspension | Category: I | ||
| P.T.O.Shaft | Rotating Speed(rpm) | 540/1000 | |
| Spline size | 6-φ35 Rectangular spline | ||
